RBSE Class 12 Physics Chapter 7 — Alternating Current: Most Repeated Questions (2013–2026)

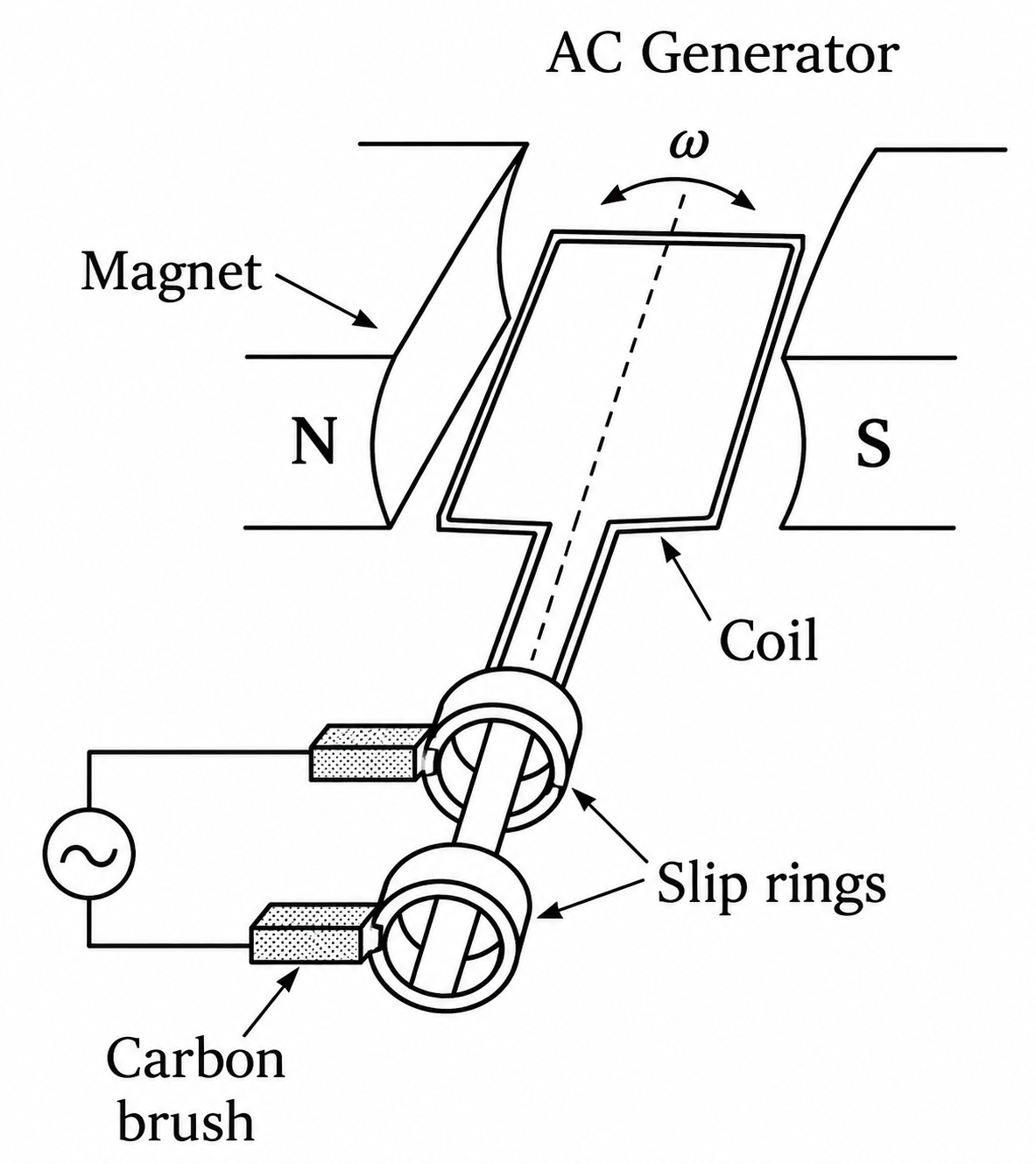

Φ=NBAcos(ωt)

ε=-dΦ/dt

ε=-d/dt(NBAcos(ωt)

ε=-NBAd/dt(cos (ωt))

ε=-NBA(-ωsin(ωt))

ε=NBAωsin (ωt)

sin(ωt)=1

ε₀=NBAω

ε=ε₀sin(ωt)

All solved questions for this chapter are in the full RBSE Physics PYQ book.

(A)

P=v×I →P=(V₀sinωt)×(I₀sin(ωt-π/2)); →P=V₀I₀sinωt×(-cosωt); →P=-V₀I₀/2(2sinωtcosωt); →P=-V₀I₀/2sin2ωt

Integrate both sides (Power Average P_avg =1/T∫₀^TPdt )

∫Pdt=-V₀I₀/2∫₀^Tsin2ωtdt

→∫Pdt=-V₀I₀/2[-cos2ωt/2ω]₀^T; →∫Pdt=+V₀I₀/4ω[cos2ωT-cos0]

Since ωT=2π

→∫Pdt=V₀I₀/4ω[cos4π-cos0]; →∫Pdt=V₀I₀/4ω[1-1]; →∫Pdt=0; ⇒[P_avg =0]

(B) Z=√(R²+(X_L-X_C)²)

Where:

R is the resistance (24Ω)

X_L is the inductive reactance (110Ω)

X_C is the capacitive reactance (110Ω)

Substituting the given values:

Z=√((24Ω)²+(110Ω-110Ω)²); Z=√((24Ω)²+(0Ω)²); Z=√((24Ω)²); Z=24Ω

All solved questions for this chapter are in the full RBSE Physics PYQ book.

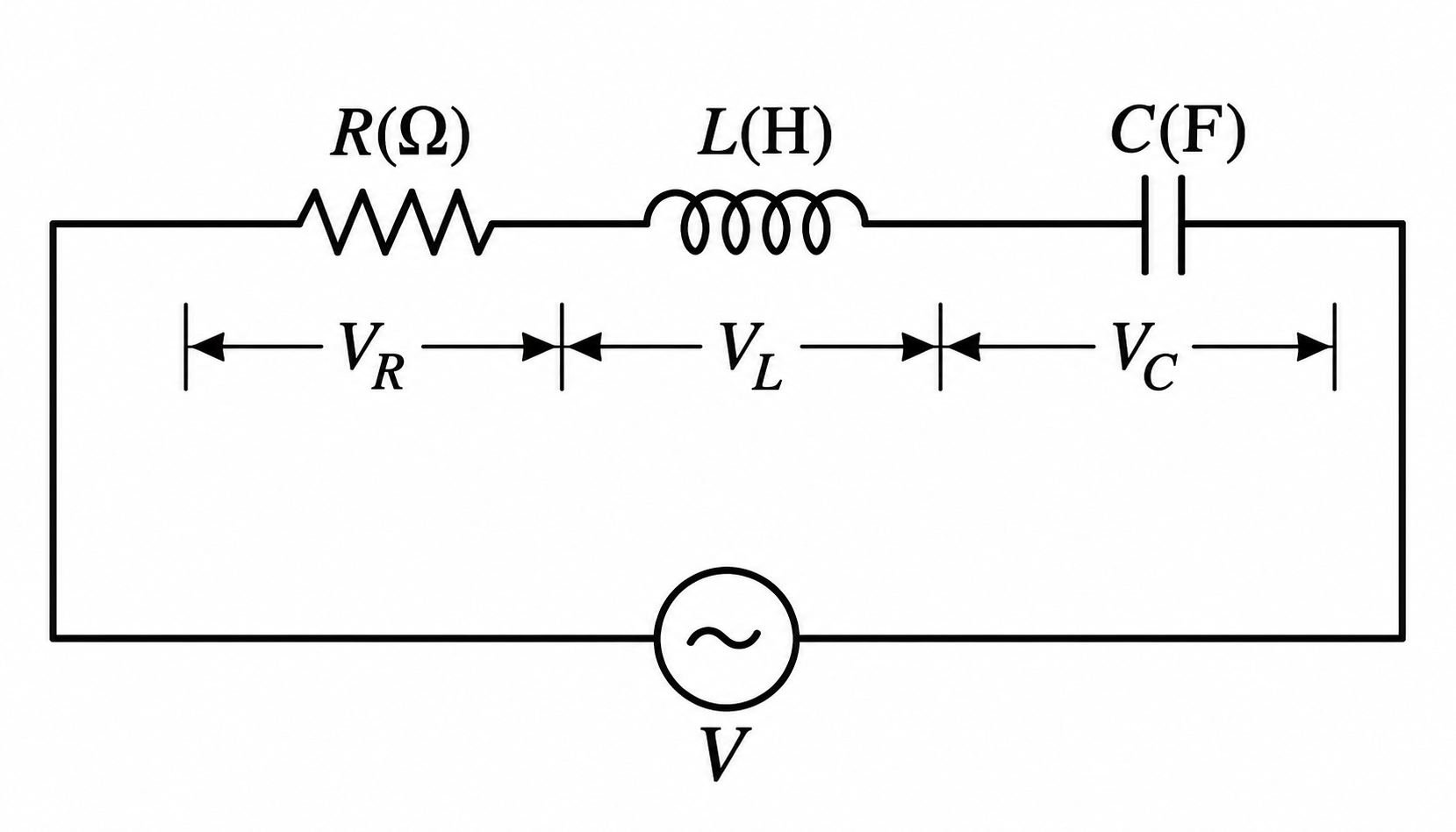

For a series LCR circuit with applied voltage V = V₀sinωt, the same current I = I₀sin(ωt−φ) flows through all three elements

The voltage phasors are: Vᵣ (along I), Vₗ (leading I by 90°), Vᴄ (lagging I by 90°)

Resultant voltage (phasor sum, with Vₗ and Vᴄ opposing each other along the same line, perpendicular to Vᵣ):

V₀=√(V_R²+(V_L-V_C)²)

Dividing through by I₀

Vᵣ=I₀R,

Vₗ=I₀Xₗ,

Vᴄ=I₀Xᴄ

Z=V₀/I₀=√(R²+(X_L-X_C)²)

where X_L=ω L and X_C=1/ω C

All solved questions for this chapter are in the full RBSE Physics PYQ book.

Resonance is the phenomenon where a system oscillates with maximum amplitude when the frequency of an applied external periodic force matches the system's own natural frequency

Any Series LCR is said to be in resonance when ' Z ' of circuit is minimum (' I ' is max ​^m ). Which means, X_L=X_C

Frequency of LCR at resonance: As, X_L=X_C

ωL=1/ωC

ω²=1/LC

ω_r=1/√(LC) or, 2πf_r=1/√(LC); f_r=1/2π√(LC)

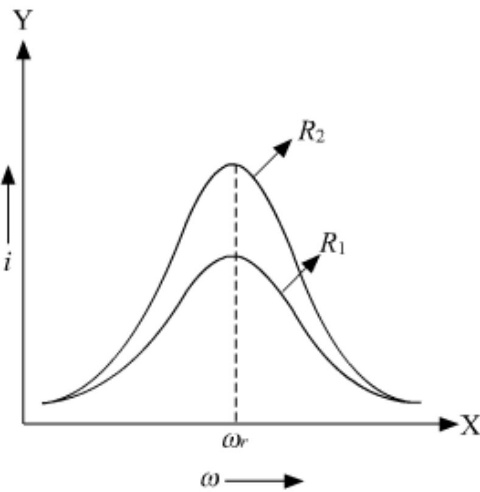

The graph peaks where the external frequency ( ω ) equals the resonant frequency ( ω₀ ), at which point the circuit's opposition (Impedance) is minimum (Z=R) and the Current (I_m) is maximum

​The sharpness of this peak is the circuit's selectivity (or Q-factor), which is inversely proportional to resistance (R): lower R gives a taller, sharper peak

All solved questions for this chapter are in the full RBSE Physics PYQ book.

1. Copper Loss =

Heat generated in windings due to resistance

Minimized by using thick, low-resistance copper wires

2. Eddy Current Loss:

Heating occurs in the core due to induced currents

Minimized by using a laminated iron core

Electric power is transmitted at high voltage over long distances to minimize loss in the transmission cables

P loss = I² R

A lower current result in much less power loss hence, electric power is transmitted at high voltage over long over long distance
